| Keep'n cool!
Got in some more new parts like this water pump
made by
Edelbrock.
This Aluminum pump delivers more water than a stock one does and even
more than most aftermarket pumps do.
|
|
|
The Victor Series pump has some nice
features to it like two ball bearings in place of bushings. It also has two
places taped for 1/2 pipe that you can use for a heater hose if you want.
One's on top and the other isn't shown but it's to the left of the two
mounting bolts. The front hub is machined from billet steel for strength
and is black oxide coated for corrosion resistance. It has a cast-iron
impeller which is CNC machined for accuracy and durability which far surpasses
stamped steel impellers. The larger impeller along with it's curved
vanes produce maximum flow rate and has greater pressure and volume,
even at lower RPM. An O-ring replaces conventional gaskets to provide a
better seal than on stock pumps and can be used for competition. This
should keep the engine cool.
|
|
|

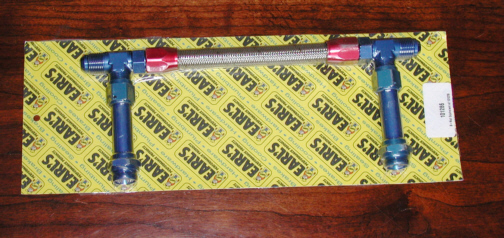

This is a duel-feed gas line for my
carburetor made by
Earl's. It has two
# 8 AN fittings and has two large nuts that
swivel for easy installation or removal of the fuel line or carburetor.
The center hose is braded stainless which looks nice and lasts a long
time. I don't think I'll be keeping the blue color but for now it's
fine. Look for a different color in the near future though.
|
|
|
|
