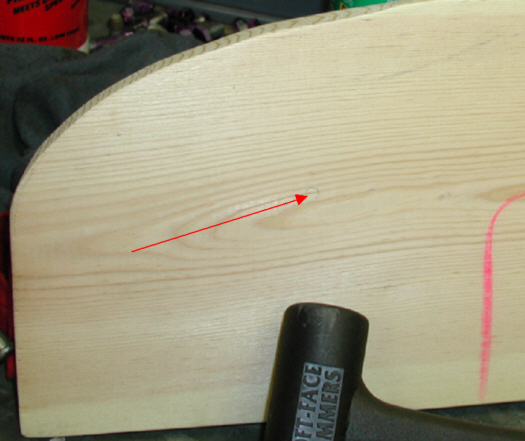

What I did was place the wood against
the threads that were sticking out and centered it. After centering I
used a soft-face hammer and hit the wood where they made contact and
this put a small round indentation in the place I needed to drill a
hole.
|
|
|
After drilling one 5/16" hole and
then countersinking it, I placed the piece over that one hole and
smacked the next one in line. I did this for all three holes to make
sure things lined up.
|
|
|
This is what it looks like all bolted
up. If you didn't know better, you would think the bolts went all the
way through. Time to hang some electrical stuff.
|
|
|
This is how I plan to attach most of
the heavier things to the wood. By drilling a clearance hole for the
center on the anchors (the pieces on the bottom), you then just tap the
sharp studs into the wood with a hammer till the shoulder is flat against the wood.
Know your ready to screw a bolt in it. These have 5/16-18 threads (coarse) in
them which will be used for the fuse box.
|
|
|
|
