Here you can see the hole that I'm
drilling which is on the passenger side of the car. I used the three drills
to get to the size that I needed which was 13/16". The hole you see
here (3/8") is the first of the three drills used. The aluminum
fuel line will be run along the frame under the black wire. The hole
that the black wire is coming through is going to be used for the
battery cable and electrical wires that need to go to the rear of the
car.
|
|
|

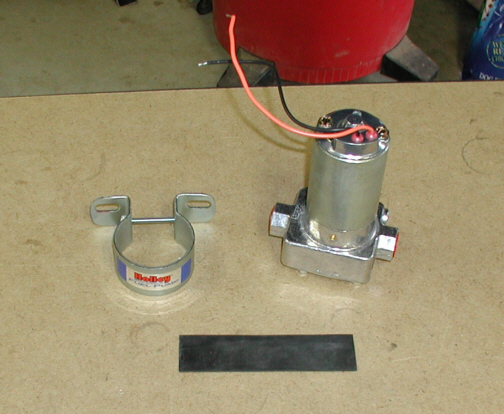

Here is my Holley fuel pump that was shown
earlier in the
engine section. The pump will be mounted under the car on
the passenger side frame rail about at the back of the door. The bracket
gets bolted on and the rubber goes between the two for a vibration free installation.
|
|
|
This is my fuel filter made by
System
1. This one comes apart so you can clean it. The fittings are going to
be used to connect the fuel pump and filter together. I decided to
use this one in place of my original one that I bought first because of
how much better the System 1 unit was.
|
|
|
I welded to 5/16" bolts to the
frame to mount the fuel pump too. This location is right below the front
of the door opening. Don't forget, my doors open the opposite way so
this means near the back of the car.
|
|
|
|
